IOS-D#80120-1, iQSFP28-100G-DAC1M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 1M
IOS-D#80120-1
100GBase QSFP28 to 2x50G QSFP28 DAC (Direct Attach Cable) Cables (Passive) 1M

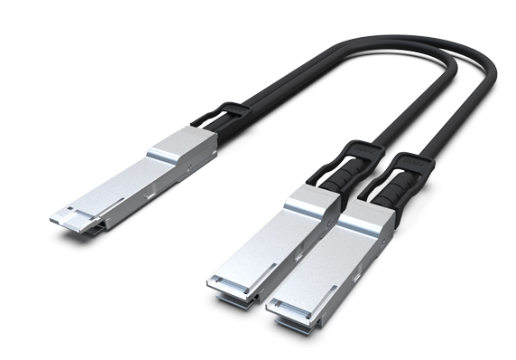

This 100G breakout Passive DAC cable is equiped with QSFP28 package at one side, and 2 of 50G QSFP28 package at the other side. The max length for 100Gbase QSFP28 to 2x50G QSFP28 DAC is 5-meter.
InnoOptics Direct Attach Copper Splitter Cable Ethernet 100GbE to 2x50GbE QSFP28 to 2xQSFP28 1m Colored 30AWG
100GbE to 2x50GbE QSFP28 to 2xQSFP28 Direct Attach Copper Splitter Cable
InnoOptics passive splitter breakout cable is a high speed, cost-effective, 100GbE to 2x50GbE, Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.
InnoOptics 100G QSFP28 to 2x50G DAC cables are compliant with SFF-8665 QSFP28 specifications and provide connectivity between systems using a QSFP28 port one side and two QSFP28 ports on the other. It connects the data signals from each of the 2 dual copper pairs on the single QSFP28 (pairs 1&2, 3&4) end to the dual copper pair of each of the QSFP28 (pair 1&2) ends on the multiport side. Each QSFP28 cage comprises an EEPROM providing product information, which can be read by the host system.
InnoOptics's unique, quality, passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
- 100GbE to 2x50GbE data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) PCB
- SFF-8636 compliant I2C management interface
Applications:
- 10G/40G /100G Ethernet
- Infiniband SDR, DDR, QDR,FDR,EDR,HDR
- SWITCH
- Router
- Concentrator
- Data center, cloud server
Ordering Information:
- iQSFP28-100G-DAC0.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 0.5M
- iQSFP28-100G-DAC1M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 1M
- iQSFP28-100G-DAC1.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 1.5M
- iQSFP28-100G-DAC2M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 2M
- iQSFP28-100G-DAC2.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 2.5M
- iQSFP28-100G-DAC3M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 3M
- iQSFP28-100G-DAC3.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 3.5M
- iQSFP28-100G-DAC4M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 4M
- iQSFP28-100G-DAC4.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 4.5M
- iQSFP28-100G-DAC5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 5M
Product Tags:
|
|

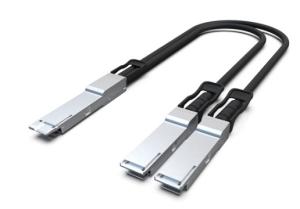

QSFP28-100G-DAC1M-B2, 100G QSFP28 To 2x50G qsfp28 direct attach cable 1M Images
|
