iQSFP-40G-DAC7M 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 7M 40G QSFP+ DAC

Name: iQSFP40GDAC7M 40G QSFP to QSFP DACDirect Attach Cable Cables Passive 7M 40G QSFP DAC
Brand: innoOptics
Price: 1 USD

Quality iQSFP-40G-DAC7M 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 7M 40G QSFP+ DAC wholesale

Brand Name : innoOptics

Model Number : iQSFP-40G-DAC7M

Certification : CE FCC ROHS UL

Place of Origin : China

MOQ : 1

Price : Unit Price: USD20-50 per pcs

Payment Terms : T/T

Supply Ability : 30000pcs per month

Delivery Time : 2-6 working days after payment of order

Packaging Details : Package with Anti-static bag

PN : iQSFP-40G-DAC7M

Data Rate : 40GBase

Package : QSFP+ to QSFP+

Length : 7M

Type : Passive DAC

Color : Black

Operating Temp. : 0 to 70°C (32 to 158°F)

Jacket Material : PVC or customed

Protocols : IEEE 802.3cd, SFF-8661, SFF-8636, SFF-8417, SFF-8679

Compatible : Mellanox, Cisco, Arista, Juniper etc.

Warranty : 3 years

RoHS : Compatible

Contact Now

IOS-D#80117-7

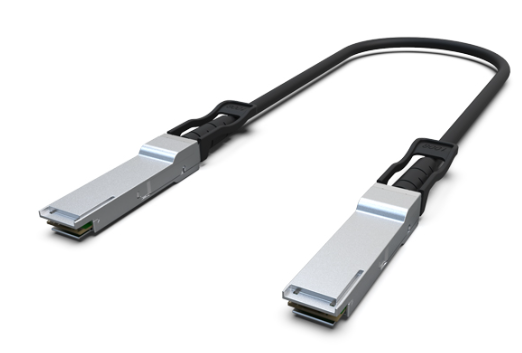

40GBase QSFP+ to QSFP+ DAC (Direct Attach Cable) Cables (Passive) 7M

This 40G Passive DAC cable is equiped with QSFP+ package at two sides. The max length for 40Gbase QSFP+ to QSFP+ DAC is 7-meter. For standard lengths we have 0.5m, 1m, 2m, 3m, 4m, 5m, 6m and 7m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 7m.

QSFP-H40G-CU1M Compatible 40G QSFP+ DAC Cable (1-meter, Passive, QSFP+ to QSFP+, 30AWG)

The QSFP-H40G-CU1M Compatible 40G QSFP+ Passive Direct Attach Copper Twinax Cable is designed for use in 40GBASE Ethernet. It provides a QSFP+ to QSFP+ copper direct-attach solution. This cable is compliant with IEEE 802.3ba Ethernet standard and QSFP MSA Compliant.
With these features, this easy to install, high speed, cost-effective direct attach copper twinax cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers.

Product Features:

Compliant with SFF-8636
Compliant with IEEE802.3bj& IEEE802.3cd
Support I2C two - line string interface, easy to control
Max. Power Consumption 0.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Minimum Bend Radius 35mm for Flexible Routing
Simplifies the Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable QSFP+ MSA Compliant
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
RoHS Compliant

Applications:

10G/40G Ethernet
Infiniband SDR, DDR, QDR,FDR,EDR,HDR
SWITCH
Router
Concentrator
Data center, cloud server

Ordering Information:

iQSFP-40G-DAC0.5M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 0.5M
iQSFP-40G-DAC1M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 1M
iQSFP-40G-DAC1.5M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 1.5M
iQSFP-40G-DAC2M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 2M
iQSFP-40G-DAC2.5M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 2.5M
iQSFP-40G-DAC3M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 3M
iQSFP-40G-DAC3.5M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 3.5M
iQSFP-40G-DAC4M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 4M
iQSFP-40G-DAC4.5M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 4.5M
iQSFP-40G-DAC5M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 5M
iQSFP-40G-DAC6M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 6M
iQSFP-40G-DAC7M, 40G QSFP+ to QSFP+ DAC(Direct Attach Cable) Cables (Passive) 7M
