200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M 200G QSFPDD DAC

Name: 200G QSFPDD to 8x25G SFP28 Breakout DACDirect Attach Cable Cables Passive 1M 200G QSFPDD DAC
Brand: innoOptics
Price: 20 USD

Quality 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M 200G QSFPDD DAC wholesale

Brand Name : innoOptics

Model Number : iQSFPDD-200G-DAC1M-B8

Certification : CE FCC ROHS UL

Place of Origin : China

MOQ : 1

Price : USD20-50 per pcs

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 30000pcs per month

Delivery Time : 2-6 working days after payment of order

Packaging Details : Package with Anti-static bag

PN : iQSFPDD-200G-DAC1M-B8

Data Rate : 200GBase

Package : QSFPDD to 8x25G SFP28

Length : 1M

Type : Passive DAC

Color : Black

Operating Temp. : 0 to 70°C (32 to 158°F)

Jacket Material : PVC or customed

Protocols : IEEE 802.3cd, SFF-8661, SFF-8636, SFF-8417, SFF-8679

Compatible : Mellanox, Cisco, Arista, Juniper etc.

Warranty : 3 years

RoHS : Compatible

Contact Now

IOS-D#80112-1, iQSFPDD-200G-DAC1M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M

IOS-D#80112-1

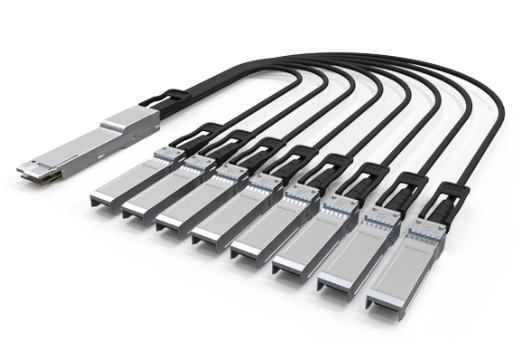

200GBase QSFP-DD to 8x25G SFP28 Breakout DAC (Direct Attach Cable) Cables (Passive) 1M

This 200G breakout Passive DAC cable is equiped with QSFP-DD package at one side, and 8 of 25G SFP28 package at the other side. The max length for 200Gbase QSFP-DD to 8x25G SFP28 DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.

200G QSFP-DD to 8x25G SFP28 DAC Breakout Cable (1-meter, Passive, QSFP-DD to 8 SFP28, 30AWG)

The cable assembly is designed to meet the high density requirements of standard and combo connector configurations. QSFP-DD pluggable solutions enable 200G transmission. This hot-swappable transceiver integrates 8 transmit and 8 receive channels. It is fully compliant with SFF-8472, SFF-8432, QSFP-DD MSA, SFP28 MSA and IEEE802.3bj standards.
It is suitable for very short distances, and offers a highly cost-effective Ethernet connectivity solution for the interconnection between devices using 200G QSFPDD ports and 25G SFP28 ports in data centers, High Performance Computing(HPC) and Switches/Routers/Server/Storage racks and across adjacent racks.

Features and Benefits

Compliant with QSFP-DD MSA Standard
Compliant with SFP-DD /SFP28 MSA Standard
Compliant with IEEE 802.3bj (200GBASE-CR8) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate: 28G NRZ Per Channel Total Bandwidth 200 Gbps (8 Lane 28G NRZ)
Low Power Consumption
Management Interface follows CMIS/SFF-8636 Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab

Market and Application

High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment
200Gbps Ethernet
InfiniBand™ 8X EDR
Fibre Channel

Ordering Information:

iQSFPDD-200G-DAC0.5M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 0.5M
iQSFPDD-200G-DAC1M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M
iQSFPDD-200G-DAC1.5M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1.5M
iQSFPDD-200G-DAC2M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 2M
iQSFPDD-200G-DAC2.5M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 2.5M
iQSFPDD-200G-DAC3M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 3M
