IOS-D#80107-1, iQSFP56-200G-DAC1M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 1M
IOS-D#80107-1

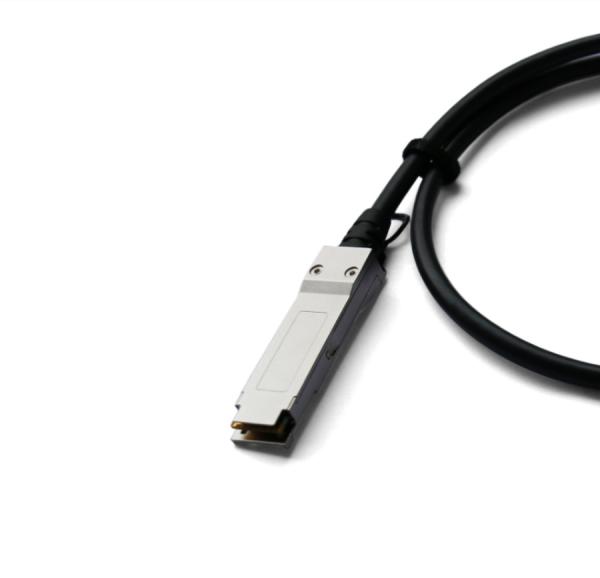

200GBase QSFP56 to QSFP56 DAC (Direct Attach Cable) Cables (Passive) 1M
This 200G Passive DAC cable is equiped with QSFP56 package at both sides. The max length for 200Gbase QSFP56 to QSFP56 DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.
InnoOptics Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 1m Black pulltab 30AWG
HDR 200Gb/s QSFP56 Direct Attach Copper Cable
InnoOptics DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.
InnoOptics QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.
InnoOptics's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
- IBTA InfiniBand HDR compliant
- Up to 200Gb/s data rate
- 4x 50Gb/s PAM4 modulation
- SFF-8665 compliant
- Operating case temperature 0-70C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2C management interface
Applications:
- 10G/40G /100G/200G Ethernet
- Infiniband SDR, DDR, QDR,FDR,EDR,HDR
- SWITCH
- Router
- Concentrator
- Data center, cloud server
Ordering Information:
- iQSFP56-200G-DAC0.5M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 0.5M
- iQSFP56-200G-DAC1M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 1M
- iQSFP56-200G-DAC1.5M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 1.5M
- iQSFP56-200G-DAC2M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 2M
- iQSFP56-200G-DAC2.5M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 2.5M
- iQSFP56-200G-DAC3M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 3M
