100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 100G QSFP28 DAC

Product Categories
InnoOptics Technology(Shenzhen)Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 100G QSFP28 DAC

  • 1
  • 2

Brand Name : innoOptics

Model Number : iQSFP28-100G-DACxM-B2

Certification : CE FCC ROHS UL

Place of Origin : China

MOQ : 1

Price : Unit Price: USD20-50 per pcs

Payment Terms : T/T

Supply Ability : 30000pcs per month

Delivery Time : 2-6 working days after payment of order

Packaging Details : Package with Anti-static bag

PN : iQSFP28-100G-DACxM-B2

Data Rate : 100GBase

Package : QSFP28 to 2x50G QSFP28

Length : 0.3m-5m Available

Type : Passive DAC

Color : Black

Operating Temp. : 0 to 70°C (32 to 158°F)

Jacket Material : PVC or customed

Protocols : IEEE 802.3cd, SFF-8661, SFF-8636, SFF-8417, SFF-8679

Compatible : Mellanox, Cisco, Arista, Juniper etc.

Warranty : 3 years

RoHS : Compatible

Contact Now

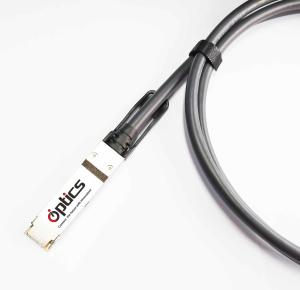

100GBase QSFP28 to 2x50G QSFP28 DAC (Direct Attach Cable) Cables (Passive) Length customed

This 100G breakout Passive DAC cable is equiped with QSFP28 package at one side, and 2 of 50G QSFP28 package at the other side. The max length for 100Gbase QSFP28 to 2x50G QSFP28 DAC is 5-meter. For standard lengths we have 0.5m, 1m, 2m, 3m, 4m and 5m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 5m.

Product Features:

  • Compliant with SFF-8636
  • Compliant with IEEE802.3bj& IEEE802.3cd
  • Support I2C two - line string interface, easy to control
  • Support for hot plugging
  • Low crosstalk
  • Low power comsumption
  • RoHS compliant

Applications:

  • 10G/40G /100G Ethernet
  • Infiniband SDR, DDR, QDR,FDR,EDR,HDR
  • SWITCH
  • Router
  • Concentrator
  • Data center, cloud server

Ordering Information:

  • iQSFP28-100G-DAC0.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 0.5M
  • iQSFP28-100G-DAC1M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 1M
  • iQSFP28-100G-DAC1.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 1.5M
  • iQSFP28-100G-DAC2M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 2M
  • iQSFP28-100G-DAC2.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 2.5M
  • iQSFP28-100G-DAC3M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 3M
  • iQSFP28-100G-DAC3.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 3.5M
  • iQSFP28-100G-DAC4M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 4M
  • iQSFP28-100G-DAC4.5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 4.5M
  • iQSFP28-100G-DAC5M-B2, 100G QSFP28 to 2x50G Breakout DAC(Direct Attach Cable) Cables (Passive) 5M
